10 ft clinker larch on iroko rowboat

Hi - Sandra suggested I send you a photo of the boat I am building.
1t's a 10 ft clinker built larch on iroko using traditional methods (copper nails and rooves, steam bending, complex gains, etc.) If it were purely a showpiece I would do the floorboards in Herreschoff style, but it will be actually used in earnest by me and the dogs.

click to enlarge
(click to enlarge)

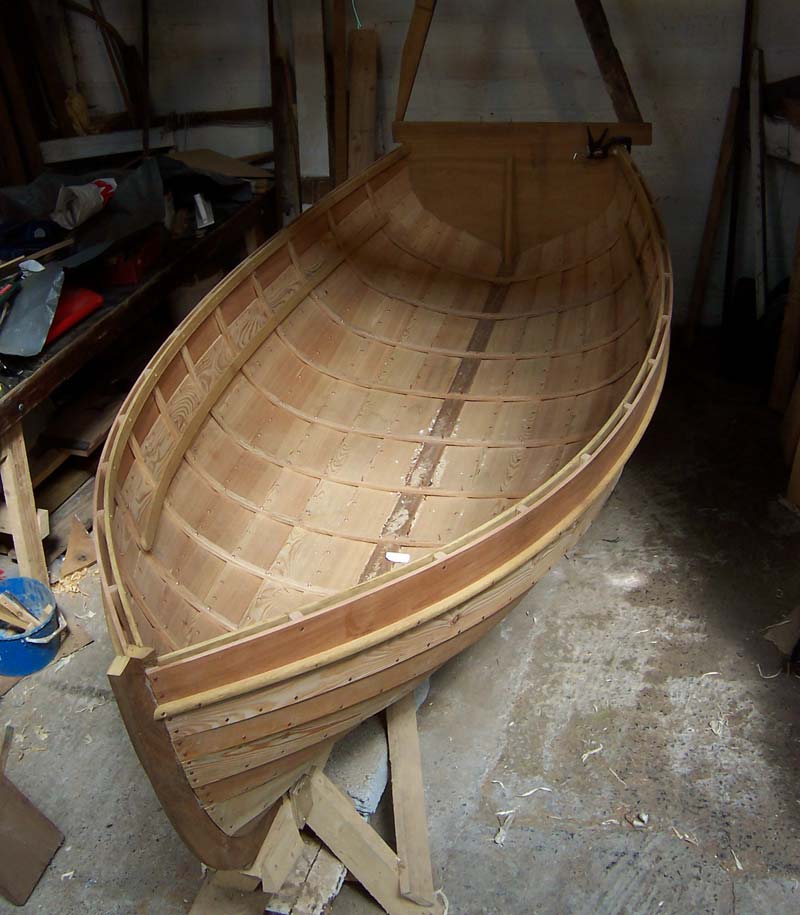

The photo is from June 2004 when I stopped work on it for the Summer. It is now quite close to being finished - needs caulking, installing of the thwarts (already cut) and painting.

click to enlarge

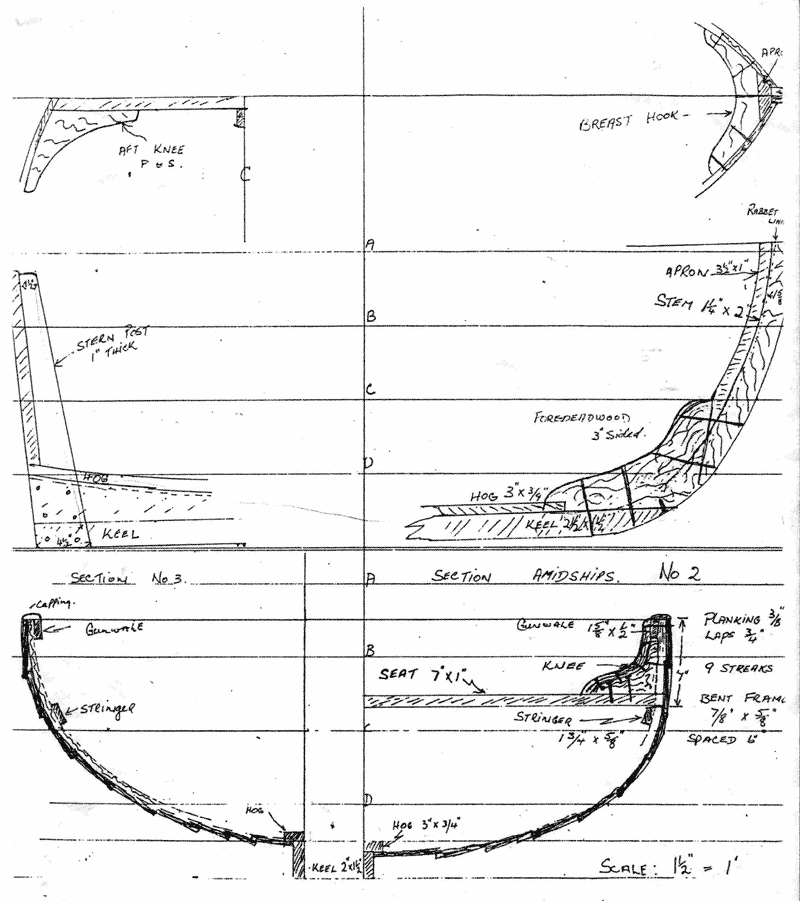

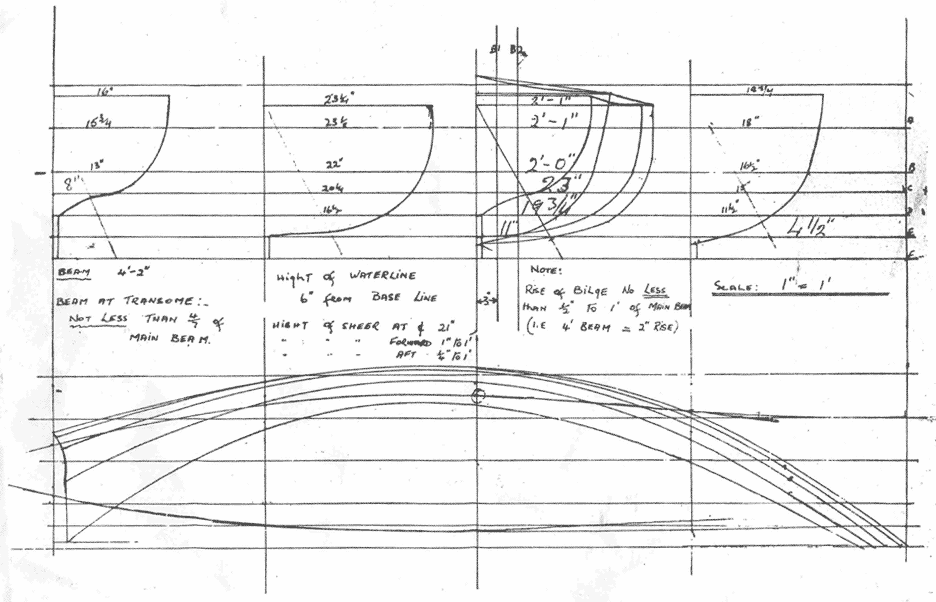

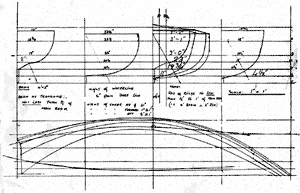

We don't know who the designer is - it seems to be just a type that has been built around here for years (or was a good few years ago). I attach the 2 plan sheets which is all we had. Would love to know if anyone recognises the design.

click to enlarge

I intend to put up lots of photos of the construction - have a lot of say the complicated gains, steaming and plank by plank stages.

Regards, Pat
Pat O'Leary
Rathlacken
The Point
Crosshaven
Co. Cork
Ireland
