Micro Making in Montréal

by Peter Lenihan ellengaest@boatbuilding.com

Be sure and read Peter's article:
"Pouring a Micro Keel"

My MICRO was launched 2 weeks prior to the WOODENBOAT SHOW in Newport, Rhode Island 1993 where, on behalf of COMMON SENSE DESIGNS, it was on display. During the show, Phil Bolger(the boat's designer) was kind enough to pay a visit. He was most impressed and left "exquisitely pleased with LESTAT". ln talking with Mr.Bolger, he confessed that this was the first time he had ever seen a MICRO in the flesh and approved of the small modifications I had made to the boat.
As you perhaps already know, the MICRO was designed to be an "inexpensive and simple boat that anyone could build". Furthermore, it was to be a good sailer without taxing the crew. To that end, Mr. Bolger designed a boat built entirely of 1/4 inch plywood, some framing stock, nails, scrap lead and not much more.


When I first saw the study plans for the MICRO, I was smitten. In my mind, I could see this little boat as a micro-yacht and set out to build it as such. My desire to build my MICRO this way was informed by the following:

1)Prior to building, I had gone to look at two different MICROs that were for sale at the time. They appeared rather rough and flimsy with the plywood all checked.

2)Bernie Wolfard, then owner of COMMON SENSE DESIGNS, admitted to me that after two seasons, the bottom of his MICRO had rotted out. He also mentioned the "softness" of the deck and some"oil-canning" with the hull.

3)This was to be my third solo boat building effort and I knew that it would probably take me just as long to build a "simple and inexpensive" boat with a limited life span as it would a, more robust,long lived,micro-yacht.So I put a bit more into her!

My MICRO, while dimensionally accurate with the plans, was therefore beefed up substantially over the scantlings called out for by Mr.Bolger. Same notable changes are as follows:
Part Per Plan As built
Hull 1/4 inch plywood throughout including deck, cockpit and bulkheads. l/2 plywood for bottom,transoms(fore and aft),bulkheads and 3/8 inch for deck and cockpit.
Keel lead slab sandwiched between two 1/4 inch sheets of plywood and nailed to an external keel batten.Free flooding voids,fore and aft. poured lead keel fastened through mahogany keelson with stainless steel rod.laminated 2X2 mahogany deadwood,fore and aft.
Rudder hollow 1/4 inch plywood shape fastened to wooden rudder post. solid tapered plywood with stainless steel rudder post and custom stainless steel tiller head.
Companion Hatch Rails 1/4 inch plywood with 3/4 X 3/4 inch cleats. l-1/4 inch mahogany capped with brass strapping,per BUD MACKINTOSH.
Cabin/Deck Support two rails running fore and aft. three full width laminated mahogany deck beams.

Premium grade materials were used throughout with the hull fastened with stainless steel screws (marine) and all surfaces and joints sealed with epoxy. Also, unlike what was called for in the plans, all my plywood panels were scarfed....no butt-straps. Prior to painting, all exterior surfaces were further sealed with 4 coats of epoxy sealer followed by 3 coats of INTERLUX BARRIER COAT.

The following pictures highlight the first stages
in my building process. Enjoy!

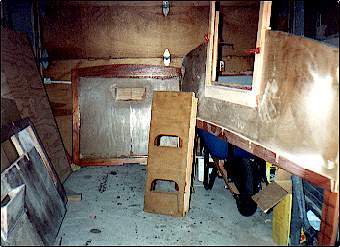

Picture # 1, A lovely view of my father's garage, AKA PETER'S BOAT SHOP. It was here that all the bulkheads were built, gradually, over the course of a winter.

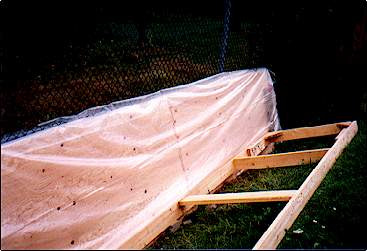

m02.jpg (16725 bytes) Picture # 2, The side panels for the hull, all scarfed together and resting peacefully beside my "scarfing table", which I had to build by this time since my father wished to regain use of the boat shop - oooops! - rather, his garage!

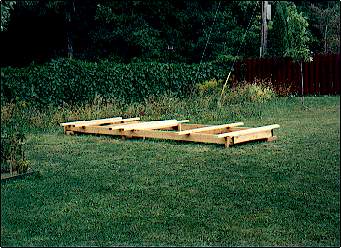

Picture # 3, The solo boat builder's ex-scarfing table,now set up all level and square, to be used as a strongback for setting up the bulkheads. This particular method is most useful in allowing the builder to work at a reasonable pace, over a period of time, without ending up with a slightly crooked hull or being obliged to rely on too many beer-guzzling friends to help hold, glue, screw or pull things for you. Highly recommended!

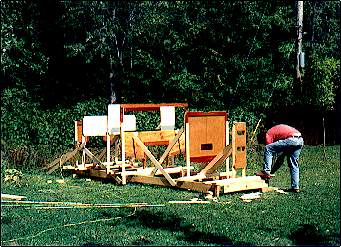

m04.jpg (30518 bytes) Picture # 4, Where's the WORK-MATE when you need it! The six stations (bulkheads and transoms) all set up, up-side down and getting a final bracing to ensure that they all remain true and square with their neighbors.
Picture # 5, SOUP'S ON!! Here we can see the basic set up I used for boiling the water which had to be used to persuade the chine logs............

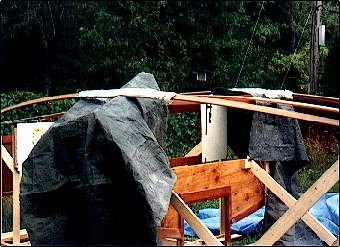

m06.jpg (23884 bytes) Picture # 6, Since I had chosen to beef up the chine logs from the prescribed 3/4 X 1 to 3/4 x 1-1/2, the compound curve they had to follow was simply too much for the mahogany. Here we can see the chine logs wrapped in towels at the toughest part of the bend.
The green plastic tarps were used to protect the rest of the structure from being soaked with the boiling water.  Just barely visible, to the left, is a Spanish Windlass which was gradually tightened to draw the two chine logs inward, toward the centerline. Not visible, is the weight suspended from the center of the windlass to pull the chines down into their respective mortises situated in both of the transoms framing stock. The entire process consumed one lazy, overcast afternoon and an odd number of cool beers.

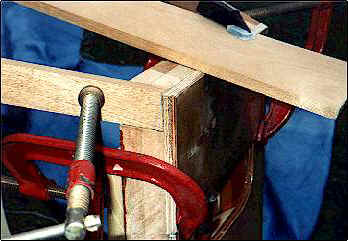

Picture # 7, The boatbuilders best friend, clamps!   This is a close-up of the port chine log, finally clamped into its mortise and waiting for some epoxy and a good screw. Also visible, is the forward end of the keelson, temporarily clamped down into position to help it "remember" the bend it will soon assume for the rest of its life.


Incidentally, at this point I had already decided on how the keel was going to be built (traditional construction) and thus required the presence of a keelson to receive the keel bolts.
m08.jpg (31011 bytes) Picture # 8, Ahhhhh.....there is nothing quite like it! Two nasty little critters, AKA, chine logs, epoxied and screwed into their places.

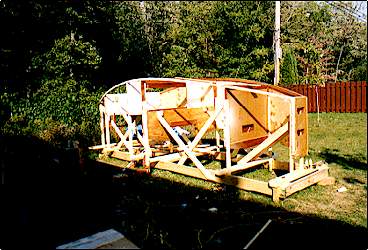

Picture # 9, A warm and sunny day! The starboard panel installed. The benefits of the strongback really became apparent here as I was able to "offer up" the entire side, put a few clamps on it,and then proceed at leisure to trace out the profile along with the location of each bulkhead.


Once this operation was completed, the panel was then taken down, cut to within 1/8" of the previously traced profile and pilot holes drilled for the bulkheads. This was then followed by applying epoxy onto the frames and chine log,offering up the panel one more time and screwing,with confidence, through the panel and on into the framing stock of the bulkheads.

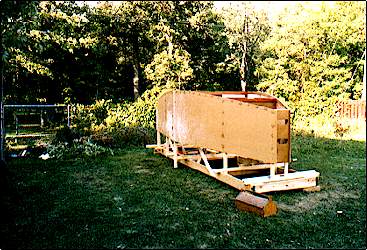

m10.jpg (33528 bytes) Picture # l0, Later on the same day, but working in a lengthening shadow, the port panel was also installed in the same fashion as its evil twin, starboard panel.

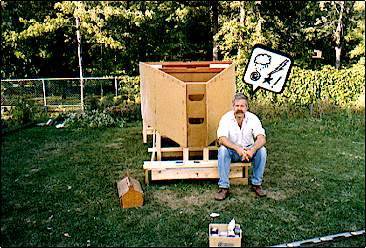

Picture # 11, Frustrated builder, after having been told to "cut it out and come to supper!". Ain't it always the case and just when you think "nothin' can stop me now"! m11.jpg (32842 bytes)

As to the installation of the bottom, begin by using a straight edge laid athwartships and dress down the chine logs/hull sides until everything is true and flush. Then, as with the side panels, lay each sheet of plywood onto the bottom and trace a line outlining the outside edge of the hull along with the location of any bulkheads crossing the bottom. Remove the plywood panel, cut to the line and drill all the pilot holes. Follow up with epoxy on chine logs and bulkheads, then lay your bottom panel back on the boat and screw it down. Proceed in a similar fashion until the bottom is all closed up.

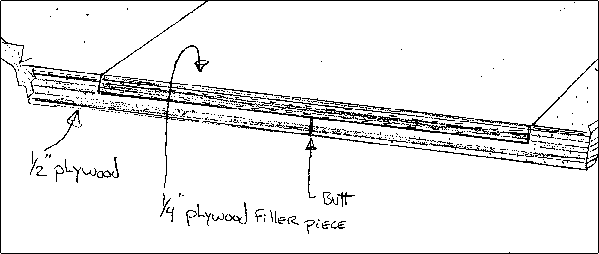

For my bottom, instead of using butt-straps to join the bottom panels, l opted for a slight variation on the same theme. See drawing below. I call it a butt scarf.


Alright, I'll confess that all this explanation could have been passed up simply by showing a few pictures but I do not have any, hence this cheap ploy!   But it really is as simple as it sounds!!  Honest!!

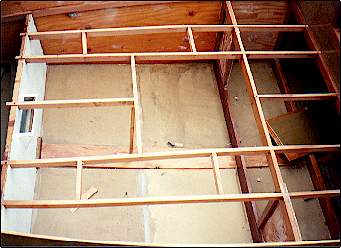

m12.jpg (18616 bytes) Picture # 12, With the bottomed now installed, the boat was rolled over (2 guys, 2 beers, 5 minutes), and it was time to begin framing out the cockpit.  Here we can see the after-most bulkhead with air-vent, keelson and the extant of the cockpit framing stock of 3/4 x 2 inch mahogany.

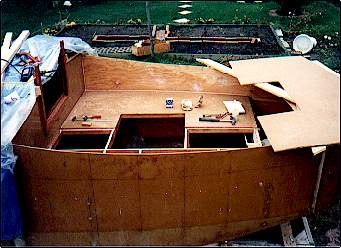

Picture # 13, 0ne half of the cockpit deck installed. Note the unfaired scarf at the aft end, under the as yet installed other half of the cockpit deck. Since the scarf in the middle of the boat ate up 4 1/2 inches of overall length, this had to be added back on.....somewhere! For those builders with time to spare, I highly recommend making 12 to 1 scarfs in 3/8 inch plywood. Truly a great builder of character!

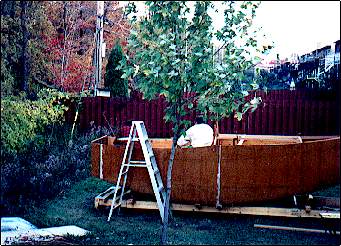

m14.jpg (29293 bytes) Picture # 14, Hard at work contemplating the next step while enjoying a somewhat limited view from the comfort of a dry and very stiff cockpit.
