Pouring a Micro Keel
by peter lenihan  ellengaest@boatbuilding.com

   I poured my Micro keel in the winter of '93 and I used a number of references before handling all that hot lead!  Namely, ''Bud'' MacIntosh's  How To Build A Wooden boat. Here I learned that you need a good constant source of heat.  I rented one of those propane burners used at corn roasts etc. and had plenty of heat for the duration of the melt down and pour.  Next came a discarded hot water tank which I then had cut open on the side and had legs welded on to it so that it would lay horizontal and high enough to get the burner underneath. A length of pipe was then fitted with an elbow and screwed into the ''lower'' drain tap of the tank.  It was snugged up just enough so that I could pivot it 90 degrees, that is, from a position at right angles to the tank to one running in line with the tank. The mold is then positioned such that when you do lower the pipe,the open end rests on the edge of your mold. The mold was simply a long rectangular box with the boat's bottom profile and the bottom of the keel defined by a tight/close fitting silhouette made up from 2X2 clear pine.  Before sandwiching the whole works together with 3/4 inch plywood, both halves were liberally coated with waterglass (sodium silicate,available at most good hardware stores,at least up here in Montreal).
    I have spent the last 6 years sailing my Micro on the St Lawrence River around Montreal and despite dealing with a minimum 1.5 kt current (much faster as you get closer to the Lachine Rapids!), absolute mayhem from the wake of hundreds of speed boats and staying out of the way of ships going through the St. Lawrence Seaway, my Micro has never, read never, let me down in the sailing dept.! She routinely out sails a couple of Matilda 20's from my club and regularly sails
right past the fleet of 404  sloops from the local sailing school!  Of course, in super light air no faster than the current, one does become rather proficient in moving backward while trying to maintain the illusion of forward motion.......enough to make you sick if you sight a spot on land and watch it move ahead while the boat is moving forward through the water but backward over the bottom.
       My sails were ordered through Common Sense Designs in 1993. The main has lots of camber in it while the mizzen appears to have just a hint.  Taking up on the mainsail snotter will do wonders for boat performance; let it out a bit in lighter winds and get it in tight when the wind picks up until reef time.

Here are some pictures of my keel pouring adventure for my MICRO

micro01.jpg (15618 bytes) 1) The two halves of the mold just prior to assembly. The insides have been coated with "water glass" (sodium silicate). The framing for the mold is from 2x2 pine. The wooden dowels indicate where the future keel bolts will pass through the keel.
2) One half of the mold in the upright position. Notice the gap in the 2x2 framing, this is where the molten lead will enter once the mold is assembled and placed "upside down." micro02.jpg (16754 bytes)
micro03.jpg (13360 bytes) 3) Close up of keel bolt dowels showing also the "wooden nuts." This will allow me to tighten up the keel bolts from within the boat and leave the outside bottom of the keel smooth and fair.

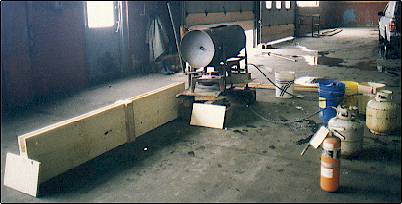

4) The Big Day! Here we can see the "recycled" hot water tank, propane burner, mold and fire extinguisher ready to begin. micro04.jpg (18607 bytes)

5) Just before pouring the molten lead, a small propane torch is used to heat up the spout so that the lead will not congeal inside the spout/pipe.

micro05.jpg (14806 bytes) Note the blocking for the mold and level to ensure that all is set and true. By the way, this operation is best done outdoors. We did it inside, with a door left open.  It was a cool 18 degrees outside.

6) Once all the lead had been poured and while it was still liquid, we used a steel rod to agitate the lead to release any trapped air bubbles.


Note the lead splatter on the floor?  Wear protective clothing and mask!

micro07.jpg (15170 bytes) 7) Back from lunch one hour later. The keel is still rather hot but the lead is congealed. My two happy helpers are relieved!
8) Oh! Oh! The moment of truth! Unscrewing one half of the mold to check out the keel.


micro09.jpg (15740 bytes) 9) Success! No voids or anything else strange other than some really charred wood. This shot was taken approximately 2 hours after the pour, and the lead is still too hot to lay your hands on for very long!
10) The mold has been re-assembled with clamps to stand the keel upright and to clean out the holes for the keel bolts. Notice the nice clean recess for the nut at the bottom of the keel.


micro11.jpg (17164 bytes) 11) Prior to "offering up" the keel to the hull, we used a 4" right angle grinder to dish out the mating surface of the keel thereby allowing for a nice pocket of Sika Flex to form a gasket around the keel bolts. Up until actual attachment to the hull, the lead was kept in the mold to prevent it from bending out of line. It is remarkably prone to this, if you do not brace it.
12) Skids were placed under the boat and the keel nudged along sideways until in position under the hull. At this point, the fore and aft dead wood are already in place.


micro13.jpg (12918 bytes) 13) Aft end of keel after being raised up to the hull with a small hydraulic jack and blocked.

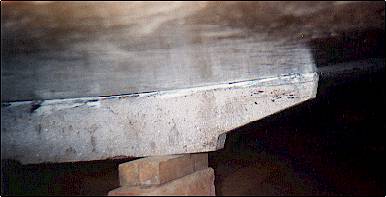

14) Forward end of keel. Note nice clean fit with bottom of the hull. micro14.jpg (13228 bytes)
micro15.jpg (17887 bytes) 15) Aft end of keel, keyed into the deadwood, keel shown in place and lead cleaned up with grinder.

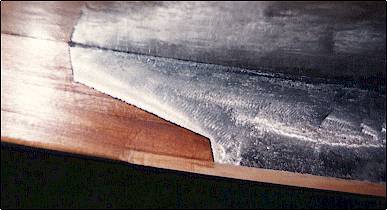

16) Same shot, showing forward end of keel.

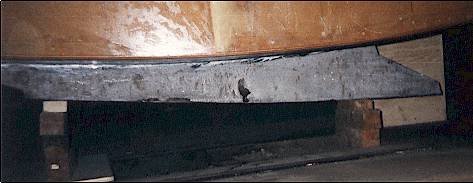

17) The keel in place without deadwood. Its location was established by consulting the plans.

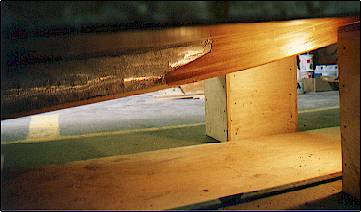

18) Forward end of keel just before application of barrier coat.


19) Aft deadwood, comprised of 2x2 mahogany laminate awaiting installation of "stern post." 20) "Stern post" in place with 12" drift bolts going into deadwood.
micro21.jpg (15272 bytes) 21) Keel job completed and now "fussing" with the rudder...

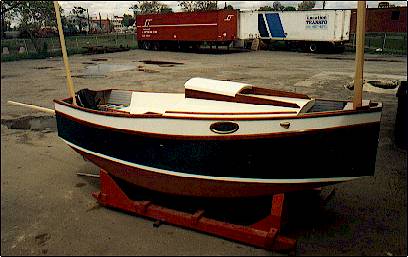

22) The boat hauled outside just to see if the mast really does fit! micro22.jpg (23325 bytes)

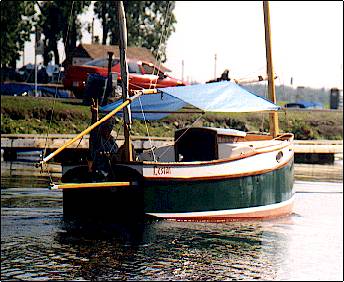

micro23.jpg (28348 bytes) 23) Hot, muggy and no wind? No problem! Just set up a simple awning, put the motor on slow, fill up the cooler and go!

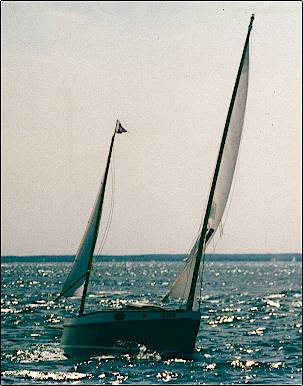

24) On the other hand, give me a bit of wind and I am gone!
