Jon jr. Construction Sequience

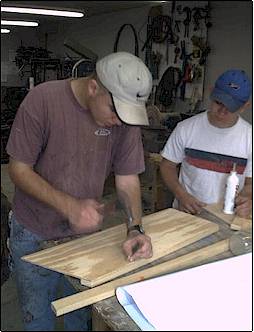

Assembling the bulkheads.
Me on the left, Dan observing

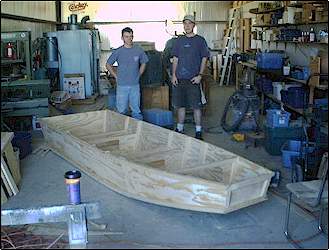

Lining up the bulkheads to see what the boat will look like

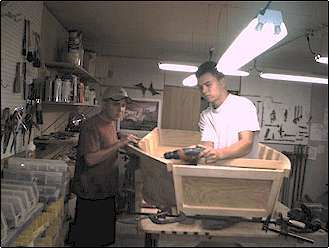

Gluing the side/bulkhead joint.

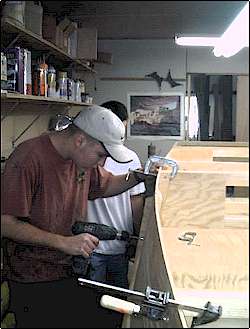

Screwing the sides to the bulkheads.

Screwing the gunwale to the sides.


Painting
