Hydro click here to read or make an observation about this  article
By Glynn Sirmans - Milledgeville, Georgia - USA

After many woodworking projects for Family members over the past years I decided to try building a boat. I found plans on the Internet of a small runabout that was first published in the Science and Mechanics Magazine in 1962.

click to enlarge
click to enlarge
click to enlarge

The hull uses one sheet of ¼ inch plywood with a “V” pattern cut out of one end to form the curved hull. I used Gorrilla glue for construction and “fiberglassed” the seams. The interior and exterior are coated with primer and oil base enamel.

click to enlarge
click to enlarge
click to enlarge
click to enlarge
click to enlarge
click to enlarge
click to enlarge
click to enlarge
click to enlarge

Total cost was approx 285.00$ (less the outboard) The outboard is a 8hp Merc. These boats should do well with 10-15hp Short-shaft outboard engines. I get more attention “trailering” around town
than running up and down the lake.

click to enlarge
click to enlarge
click to enlarge

Steering: I at first ran the steering cable's below deck,(in pictures) but recently move them above deck, this decrease's resistance and wear. The steering drum is made from a 2 inch PCV pipe coupling with a curved cap on one end and a ¾ inch pipe bushing on the other. The ¾ inch pipe nipple fits a Murray lawn mower steering wheel.

I found the pulley's, springs and cable at lowe's but it looks like "ya'll's" (duckswork) are a better quality. "Glen-L" boat plans may have had a steering kit that had a hub included.

The PCV steering hub is working satisfactory so far, The wheel doesn't make a complete 360 deg turn to get full travel of the
Outboard.

click to enlarge
click to enlarge
click to enlarge

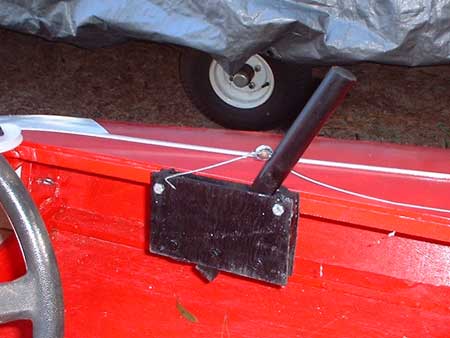

Here is a pic of the homemade throttle. Just a broom handle "sandwiched" between two pieces of 1/4 inch luan. Saved me about 100 $.

P.S. I have couple of videos of my little red hydro-plane. They're about 2 megabites. Video-1 - Video-2
