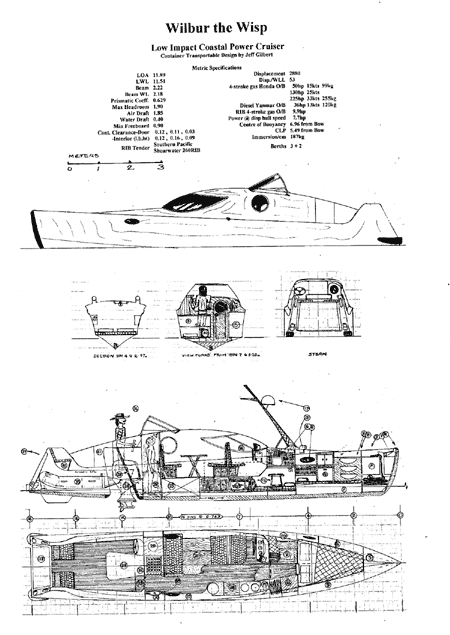

Wilbur the Wisp
Low Impact Coastal Power Cruiser
Container Transportable Design by Jeff
Note: Jeff Gilbert, designer
of Hot Chili
, entered a
design contest at conceptboat.com
He did not win, but has allowed us to view his entry
Honda OB -
|50hp - 15kts
|130hp - 25kts
|225hp - 33kts
Diesel OB -
|36hp - 13kts
The dream of voyaging overseas rarely includes a long slog across
a moody ocean to get there. Furthermore optimum watercraft for
overseas coastlines differ vastly from those required to safely
get there. Long range motorboats are neither nimble nor beachable,
blue-water sailcraft have deep draught & multis are clumsy
& expensive to berth. The possibility of arriving exhausted,
in an unsuitable boat needing unavailable parts, keeps would-be-Voyagers
home in droves. Besides, few with the money have the time to cross
Wilbur covers the hard miles on a container ship, arriving in
pristine coasting condition. Wilbur is a “Low Impact Cruiser”
–a holiday home moving swiftly & quietly, without a
huge displacement wave disrupting those same sensitive land-water
interface environments which afford the most beautiful of views.
Wilbur can be craned from the water to a flat surface, and then
pushed/winched into a standard 40ft container on 3 steel protected
keel points. Only preparation is lowering the windscreen &
radar mast, & raising the engine.
Wilbur fits a road/rail flatbed, & is legally trailerable.
Holidaymakers can freight the boat ahead to a suitable launching
facility. Return trips may be eliminated, time pressures eased
Plan changes need not entail abandoning the boat overseas.
CONTAINER SHIPPING COSTS LESS THAN STEAMING FUEL.
Even short hauls are < $US1 per mile, San Francisco or UK to
Indonesia is under $US3000, and the longest trips on the planet
are $US5000. Insurance is negotiable & optional, & compared
with steaming risks, probably unnecessary.
For the commercial builder, export costs become a viable fraction
of product value.
SIMPLE LIVING SYSTEMS
Plans show a minimal fitout for a small group to cruise in uncluttered
comfort. Twelve-volt electrics are: safety, deck & interior
lighting, CD & radio, sounder, radar, GPS, anchor winch, bilge
pump & a small fridge when an icebox can’t cope. Deep-cycle
gel batteries charge by motor generator, shore power & solar
panels. Salt & fresh water are manually pumped. Both bilge
pump and anchor winch are backed by manual equivalents. Cooking
is by 2-burner gas stove. Shower hand-pumps from a bucket of hot
water. A composting toilet eliminates through–hull fittings.
Engine air cooling ducts run along cabin sides sucking toilet
(port) & cabin (starboard) air as they bypass sealable vents.
Stale air is expelled into the engine box, along with grey water.
This comfortable “upgraded camping” level makes fine
ecological & economic sense, but is not for everyone! A luxury
fitout will up displacement, but if weight is kept low the only
apparent effect is 55mm/tonne extra immersion at rest.

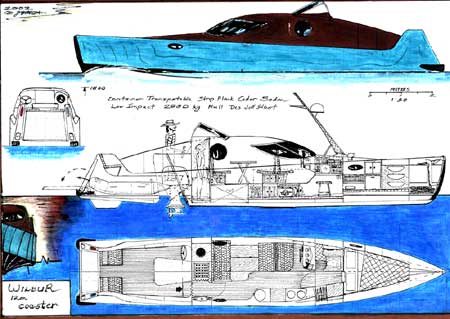

click to enlarge
A hard chine at WLL provides form stability for the narrow moderate-Vee
warped-bottom planing hull. Bottom sections are concave with the
deadrise of the planing section dropping over 25ft from 23degrees
to just an inch at the stern. The high WL Length:Beam ratio, shallow-Vee
& low displacement produce a non-aggressive hull form which
slips across & through the water with little fuss or fuel.
Such designs are gaining recognition (mainly via the booming Power
Cat industry) as a third hull form, unlike the limited speed displacement
type or the power-hungry larger deep-Vee planing hull. Wilbur’s
“Displaning” or ”Cutwater” hull type increases
speed smoothly with power, sans “planing hump”. At
low speeds her fine entry slices her along, shifting very little
water a very small distance for passage. Stability range, accurately
modelled by computer, is 105 degrees with half tankage.
POWERING & AUXILIARY
The outboard-in-a-well prevailed over a more economic Inboard
diesel to provide easy servicing anywhere. More importantly the
mounting plate can be hand cranked in guide slots to clear the
prop for beaching & passage transport. This allows headroom
despite having to pass a 2.29m2 container door. Positioning forrd
beside the outside helm eliminates cavitation. The well’s
soundproofed cover is both table & workbench.
The 225HP Honda 4-stroke rockets the narrow hull to 33knots, while
the slower 130HP version gives 5nm/gallon. A Yanmar 36HP Diesel
outboard returns over 10nmpg @ 8.5 kts. Motor steering is adequate
but improvable by low-profile rudders hung from the twin tracking
keels. The high-load NZ-designed tender handles rugged conditions
and its motor will push the main hull in a breakdown.

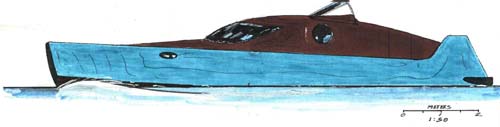

STYLING & MATERIALS
Form is dictated by the container’s low cross-sectional
area, combined with the need for work-area headroom. Conventional
styling looks like a lowered scale model under this constraint,
& was rejected in favour of a curvaceous semi-automotive form,
with rounded sheer & cabin sections lowering windage. In a
seaway Wilbur sheds water easily, but nevertheless the cabin door
The E-glass or sheathed cedar strip hull comes in under a tonne.
Major bulkheads are foam composite. Interior finish is cream offset
with hardwood trim and stained/epoxied ply furniture. Windows
are tinted perspex on Sikaflex, Awlgrip decks sheathed end-grain
The Radar mast (essential for night, fog, traffic & harbour
entrance) folds forrd; braced upright it provides a handgrips
for the sole foredeck access via ladder. The foredeck is precarious
in a seaway, & side-decks virtually non-existent to gain cabin

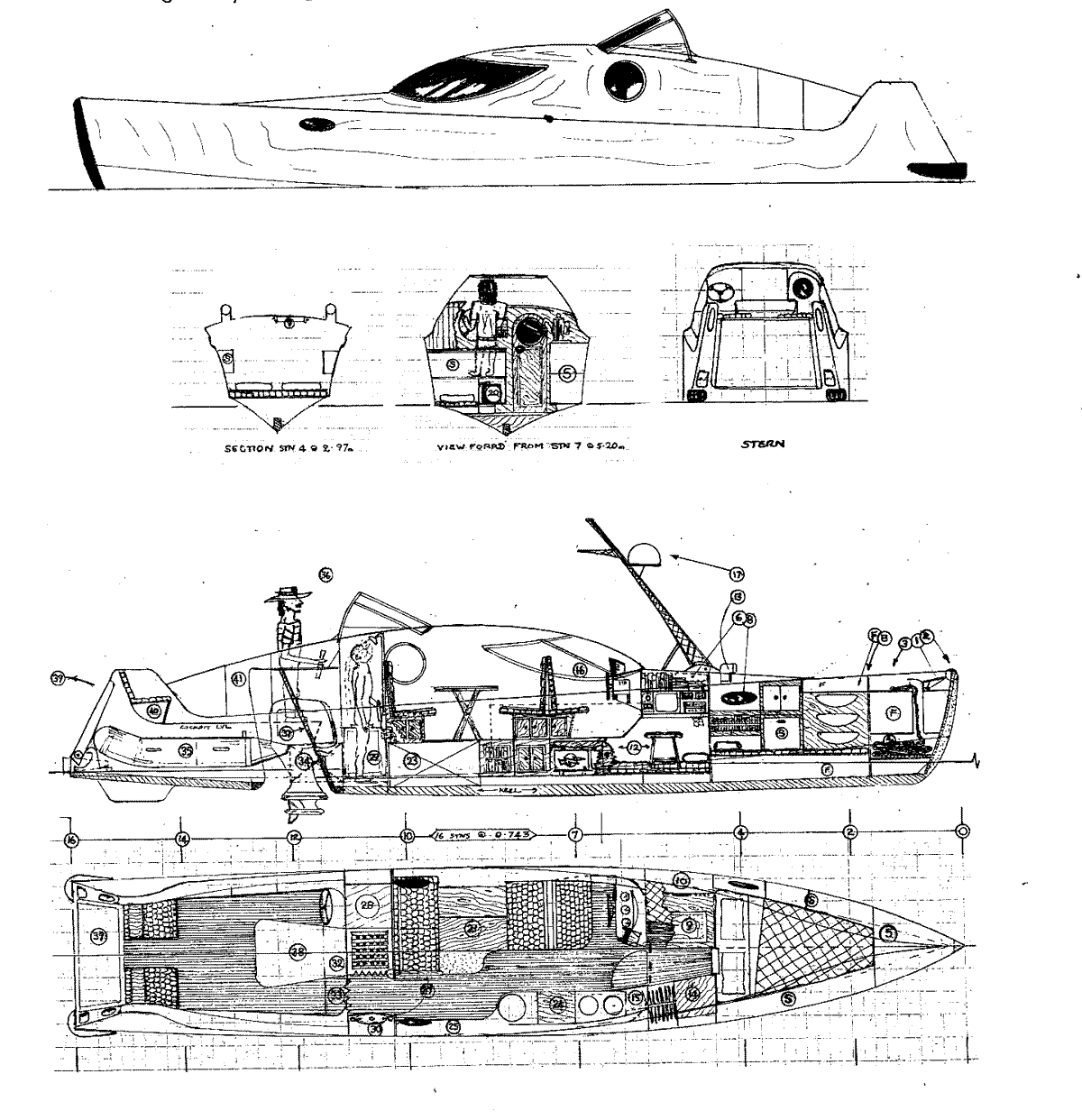

The cockpit is 610mm AWL affording 360deg.visibility. The transom
folds down forming a swim platform & opening the RIB garage.
Two steps down is the wet (heads & shower) cabin area, &
a watertight bulkhead leads to the
Galley, raised lounge area, inside helm. Ventilation by rear lifting
clear hatch over helm. Table and seats may convert to Guest double
Chartroom/office/stateroom. Foredeck ladder/hatch , opening ports,
2 Dorade vents. Under-table quarter berth extends beneath helm.
This concept opens overseas coasting to a sector without the time,
inclination, or substantial boat for ocean-crossing. It offers
a viable worldwide delivery system for builders, and could provide
chartering from a Client’s port of choice.
Wilbur is attractive, environment and fuel-responsible, fast,
ergonomic, uncluttered and infinitely useable. It can provide
a millionaire’s holiday to the far less moneyed.

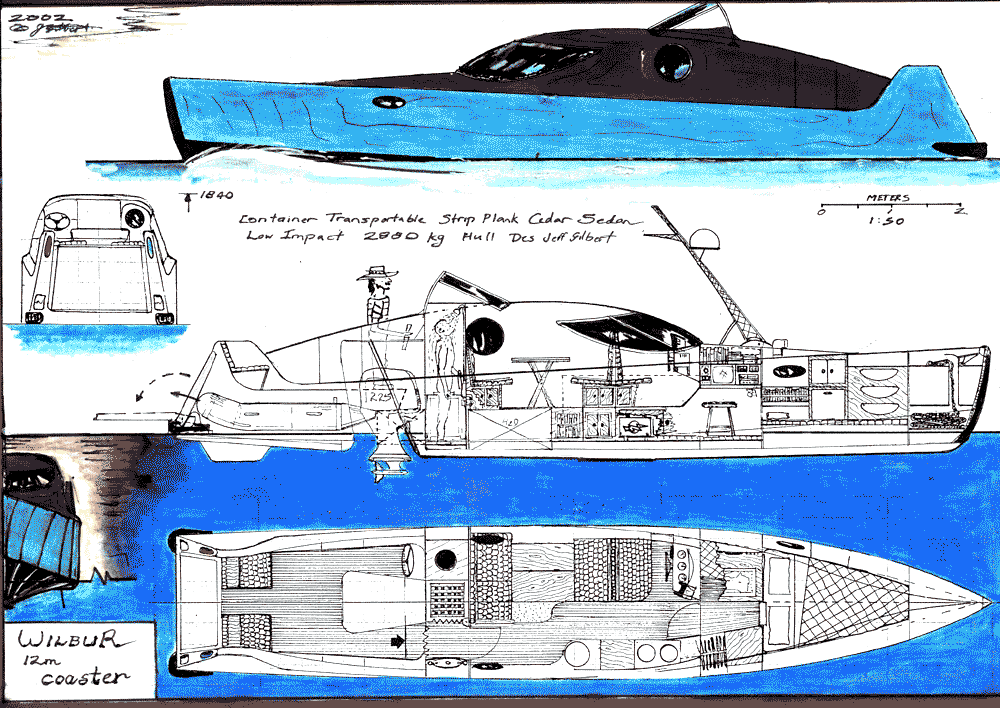

here for Key and illustration
