An Apartment Boat
By Lew Clayman
So says to myself, I could really
use a boat like that.
So then I think, what’s
it gonna be? And I reread the rules of the contest and I see
the words Greenwich Village and I think back to that time when
I was kid in The Bronx and like every teenager in the The City
I take the Subway down to The Village for the first time this
one Saturday night with a coupla friends - everyone says it’s
so freaky but really it’s just this old neighborhood way
the hell downtown and we couldn’t afford to go in anyplace,
and I don’t even like cappuchino. So it’s maybe
ten o’clock and we get really hungry and walk over to
Chinatown and pick the first place we see that doesn’t
have a lot of Chinese customers and we go in and the food stinks
and then I found out, don’t ever eat with the tourists.
But it mighta been different.
I mighta gone back in my twenties, dressed in black, hung out
at places, and I woulda had the coolest accessory of all: a
Portfolio in the basic version
is a paddler, almost 8’ long and not very interesting

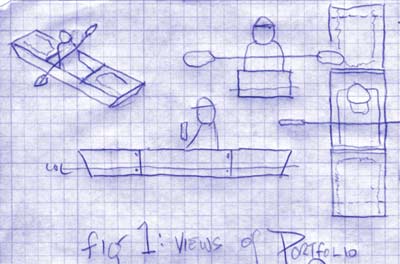

as a boat form (see fig 1). Disassembled into three main modules

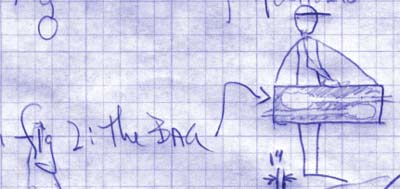

and a few other items, it stows in a soft shoulder bag (see
fig 2) which is 37x25x 7 inches. It stores in a closet and travels
easily in an elevator and on the subway, all the way from The
Village to the river or even to The Park, or even (I don’t
tell people this) to The Island. The double-paddle disassembles
into two halves, which stow in slots on the bag in the manner
of tennis rackets. Gunnels are 3” ply strips, also of
¼” stock, glued in place. End pieces are 2’6”
overall, with the waterproof fabric pocket transoms angled back
6” on the bottom; the middle pieces are 3’ long.
Waterproof fabric pockets for bulkheads are placed one inch
from all mating ends. Stiffeners, discussed below, are inserted
in the pockets.
Bow and stern modules are identical,
and as many center sections as desired may be inserted. The
basic 94” LOA paddler uses only one; a second adult paddler
might want to use a section for himself and a third for additional
buoyancy. Bow and stern sections are shown with fabric decks
with zippers; the center units are shown open but could be fitted
with zipper cargo covers, kayak skirts, or whatever is wanted.
Customized units are possible in any length.
Units attach as follows: the
forward unit is fully assembled, and the aft unit is placed
overlapping and “inside” the forward unit, such
that the 1-inch spacer area at the mating ends line up, and
so do the six boltholes. Note that for a each section, aft boltholes
are set ¼” (one ply thickness) higher than the

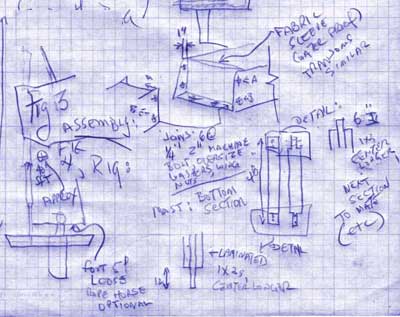

forward boltholes (see fig 3, assembly). Bolts and wingnuts
are placed and secured, with washers and lockwashers. Then the
center unit bulkheads are squeezed in, and the process is repeated
for the next center unit or stern unit, as the case may be.
The sides and bottoms are ¼”
ply, bow and stern transoms are fabric with ply stiffener inserts.
As an alternative, the sides could be made from ply with large
empty cutouts and fabric covers; this might save some weight
and add cool; instead of ply you might use a custom aluminum
alloy frame with molybdenum, not because of any real advantages
- I just like to say molybdenum. It’s a metal, right?
You could make the bow profiles curved, to create a spoon shaped
entry, and use heavy plastic as the stiffener; doorskin ply
might also serve. Similar remarks apply to create a sexier stern.
The hinges are made from split
bicycle innertubes, glued and stapled, and form the chines;
I’m sure that molybdenum could be used here too, some
way or other. Molybdenum. Ooh.
An alternate stern is possible
for power, using ½” ply and a vertical stern with
bracing bolted into the sides. Braces are simply angle irons,
two each side and two on the bottom (not shown). Bow and center
modules as above. Storing a small outboard and gasoline in a
small apartment doesn’t appeal to me, but that’s
your problem, not mine.

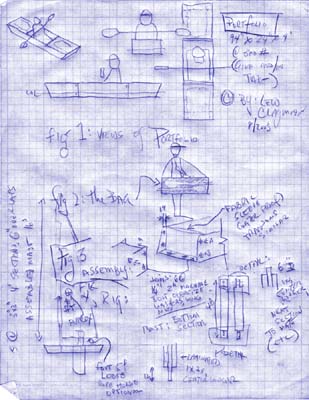

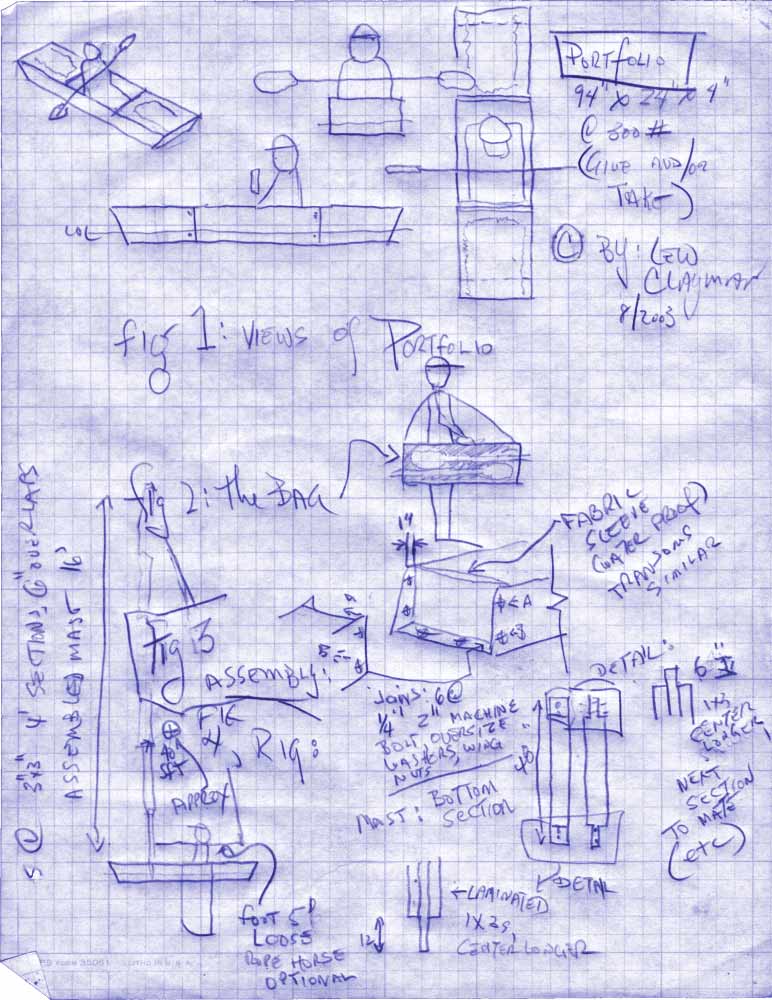

Complete drawing (click to enlarge)
For rowing, the simplest of all
oarlocks are loops of rope set near the aft end of a center
section, through a reinforcing pad of 1x2 screwed and glued
in place on the outer surface. The oars should be, it says someplace,
between 38” and 42” long, which means that the paddle
halves will serve nicely. Cover the mating sections with a small
towel held by velcros sewn on, and you can grip them without
slicing your fingers on the mating hardware. Another such serves
as leather on either side. Or carry a spool of serving twine
and make up a big fancy macramé thing - this is The Village:
Sailing is a tricky business.
The smallish, but high-aspect, 40 square foot sail is mounted,
Bolger-style, on the inner face of the starboard rail, and is
shown loose-footed, although a sprit boom wouldn’t be
a bad idea. Larger bolts hold the mast and hull together at
this point, and the boltholes are enlarged to accept it; adjacent
bulkheads are holed to secure the mast near the foot and gunnel
in a forward-aft direction; in all there are four holes piercing
the mast. (see fig 4) The leeboard, 48” x 18” and
intended for shuttling, needs a different carrying case sewn
to suit; while the sail folds and the five 4’ mast sections
can have slots of their own on the bag. As shown, the mast bolts
together, but a more elegant solution is possible. The rig bag
may be brought, or left home, as desired. For sailing with more
than one person, a pair of rigs mounted three sections apart
makes a really odd schooner. Steer with paddles.
The carrying bags, of course,
should be black.
Lew Clayman is six feet tall
and trying to lose weight. Although he has lived outta town
for seventeen years, he still can’t find a bagel that
really measures up.
