- Prefatory Generalities
As I imagine the winning entry for
this contest, it comes off the drawing board of the late Walt Kelly.
There's a broken-down, hillbilly cabin, relocated to a leaky raft,
moored to stakes in the soft mud of a leafy swamp. I see a fishing pole
sticking out a window and a jug of corn liquor on the porch. For local
transportation, a moss-laden, flat-bottom skiff trails at the side, oars
in a jumble.
Well, I haven't spent much time thinking about such things, I don't
have any especially bright ideas in that line, and I couldn't draw them
if I did. Scratching my head hard enough to engender a little
creativity, I did investigate the possibility of mounting a
store-bought, kit-built, geodesic dome on miniature barge. It seemed
workable, but better suited to huddling against the cold of a New
England winter than enjoying summer in the Okefenokee. I dropped the
idea.
The problem, I think, is that I didn't want to let go the idea of
designing a boat, an actual vessel. So I decided to explore the
possibilities of a minimum, liveaboard boat. One obvious possibility
would be some variant on the New England catboat, a type of which I am
fond. It could be made to work, without doubt, but construction of a
catboat is a real job of boat building, and the spec calls for something
quicker.
Perhaps the most successful design of the intended type is Philip
Bolger's Jesse Cooper. Several boats have been built, they have been
used as intended, and owners have reported satisfaction. On the other
hand, Bolger himself has noted a list of deficiencies, so we need not
regard the design as definitive. I adopted the idea of a vessel along
similar lines, but smaller (if possible), simpler (if possible), with
interior improvements (if possible). For these benefits, I was prepared
to sacrifice seaworthiness and performance. I gave long study to Jesse,
and to Bolger's design for a live-aboard scow schooner.
These drawings are my version of what Bolger would call a cartoon
(his are hand-drawn), and what others might call the first cycle of the
design spiral. In other words, this is the first try at getting the
principal concepts meshed together. Chances are that everything would
change a little in the next cycle, but the overall pattern is clear.
- Description
The leading dimensions are:
LOA: 22 ft.
LWL: 20 ft.
Beam: 7 ft. 8 in.
Displacement: 5000 lb.
Draft of hull: 1 ft.
Draft of leeboards: 4 ft.
Sail Area: 316 sq. ft.

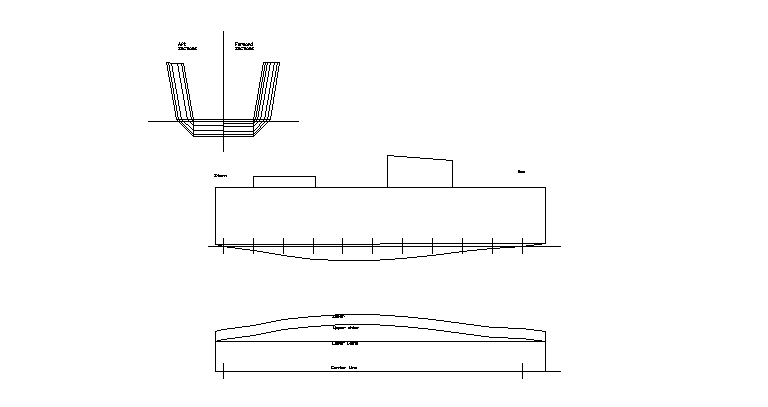

 Lines:
a punt underbody with very high sides, twenty-two feet long. The middle
bottom comprises three full-width sheets of ply. Additional beam is
obtained with a bilge panel. On the straight (in profile) and slightly
raked upper chine, the upper sides are erected using three more sheets,
also full width, slightly flared. The bilge panel tapers to a point at
each end, so bow and stern transoms are each rectangular and vertical.
Ballast will be required, even in a no-sail version, to balance the
high, wide deck and the personal gear located in bins and cabinets built
in the higher (i.e. more convenient) volumes of the cabin.

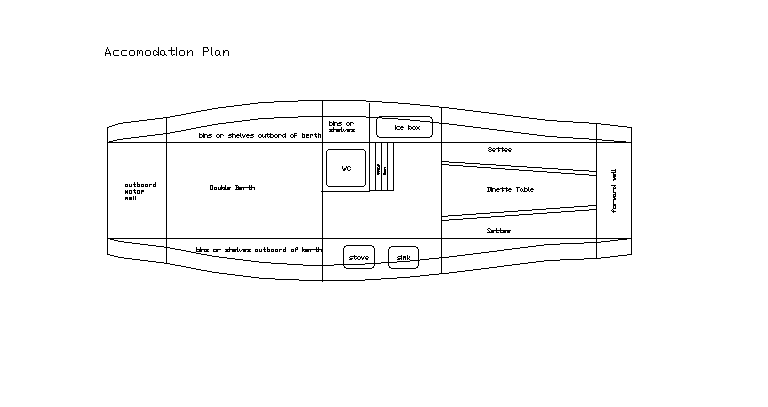

 Interior
arrangement: the cabin is divided into three main areas. Forward, we
have the dinette, pushed up adjacent to the open forward well. The
dinette is 6 ½ feet long and can be converted to a double berth.
Footroom diminishes going forward, but four should be able to sit
comfortably, leaning against the flared side. Aft of the dinette is the
work room, devoted to galley and navigation. The forward portion of this
section, and the aft part of the dinette, are covered with a trunk cabin
giving over six feet of standing room. The companionway ladder, which
descends from the bridge deck on the port side, has more steps than
shown and is about as steep as a step ladder. (The side-facing, vertical
ladder on Jesse Cooper is one feature that would never be accepted by
the tradition-bound geriatrics that I sail with.) Aft of the ladder and
under the bridge deck is the head. The W.C is near centerline on the
flat bottom to give maximum headroom. The floor area to starboard forms
part of the head as necessary with privacy from the work room and aft
cabin provided by a two-position swinging door and/or additional doors
and/or curtains. Aft of the work area and head is the master suite,
dominated by a double berth. The after portion loses headroom to the
footwell above.

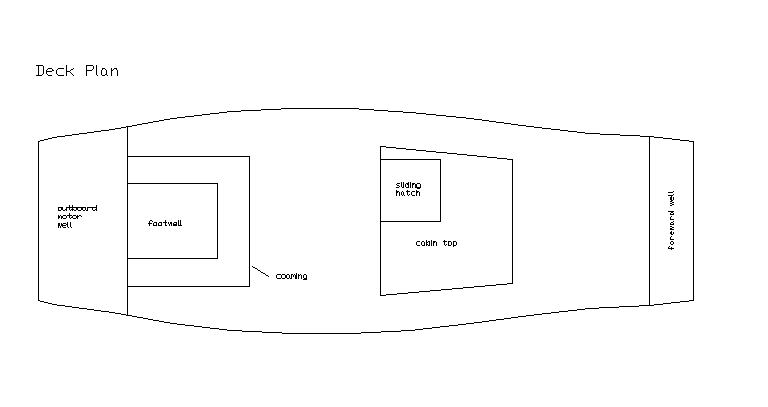

 Exterior
arrangement: there are open wells at each end. The forward well measures
18 inches fore and aft. Wells like this seem to be popular in Bolger
boats, used for anchors and wet line. The aft 30 inches are for a proper
outboard motor well. There is the short trunk cabin, a fairly long
bridge deck, and small foot well to form a cockpit. Around the footwell
is a low coaming.
Power: the specs do not require power, but I imagine that a well-used
outboard of 10-15 hp would be very useful, nicely fitted with remote
controls and steering in the cockpit. Possibly, a straight power version
should have a skeg.

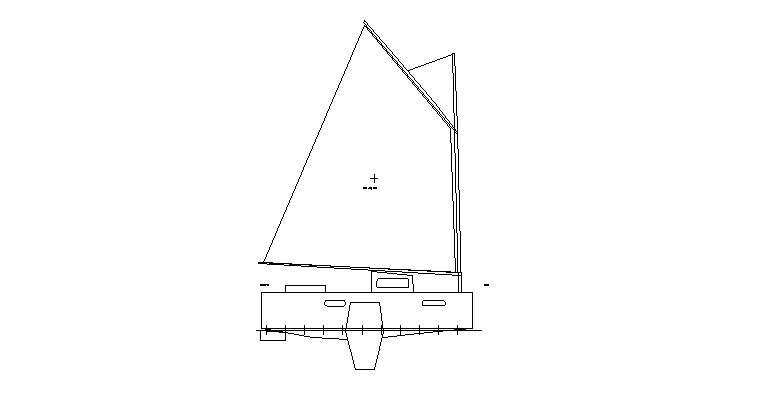

 Sailing rig:
this is an all or nothing proposition. If you are going to sail, you
need it all. If not, you don't need any of it, even the rudder. As I see
it, the rig should be quite large. The blunt bow disqualifies this from
being a heavy weather boat, so adequate sail for light weather is
required. The 316 sq. ft shown is probably minimum. I think the gaff rig
is about the simplest. The mast has a deep bury in the forward well. A
boom gallows (not shown) will be welcome for keeping the rig tucked away
and quiet while in residential mode, and also provide roll bar
protection against the low-swinging boom for those seated on deck.
Leeboards simplify the construction, and don't compromise the interior.
- Summary
The basic boat is an efficient volume to build from
ply sheets. Provision is made for a rich list of desirable features.
However, the devil is in the details, especially the workability of the
centrally-located head.
The boat should sail and power well, except for conditions in which
the blunt bow make it impossible. Properly built and ballasted, it
should be safe in any reasonable conditions, even those in which it
can't make much progress in the upwind (upwave?) direction.
- Appendix I – looking forward
As noted above, this is the
first look. What would be changed in the next refinement?
These lines do not allow adequate displacement, and the ends,
especially the bow, need to be higher. The fix is more rocker on a
shorter waterline. The chine should be higher with more rake, which may
help move the widest point forward, benefiting the leeboards. The whole
boat can be at least 6" longer and still come out of three sheets, even
allowing a loss of 6" per butt for overlap. Looking carefully at the
requirements for the motor, the length of the well can be shortened from
the 30 inches shown here. All of the additional length would go in the
work area, easing crowding.
The accommodation plan is based on the bridge deck (to give headroom
in the head), but dimensions and details of the footwell/cockpit area
deserve closer study.
As for the rig, the greater rocker will allow a better shape and more
area for the rudder. The ultimate sail area is dependent on stability
calculations.
- Appendix II – an explanation
The most observant of readers
will have noticed that the curve of the bottom, as seen in profile, is
not a single smooth curve, but has inflection points or "recurve" at
each end. Let me explain how this happened.
Thinking to get a nice curve without having to create one myself. I
copied the coordinates for the chine line from a Bolger sharpie into my
spreadsheet and used them to calculate the curve of areas. Then, dipping
into my toolbox of analytic geometry gadgets, I calculated the chine
coordinates for the punt to get a set of lines with the same curve of
areas, adjusting to the desired displacement. It was only after I
laboriously entered all the digits into my CAD program that I noticed
the recurve effect. By that time, it was too late (and/or I was too
lazy) to start over. Interestingly, since the concept calls for an upper
chine and sheer that are straight in profile, the recurve is translated
into plan view there.
In a new lines plan incorporating the changes indicated above, the
recurve would disappear. The episode illustrates a) the perils of
design-by-spreadsheet and 2) the limitations of simplified hull shapes.
Filling out the ends to a simple curve should increase the prismatic
coefficient to the benefit of high-speed sailing.
Drawings:
